Scientific Instruments, Analytical Balance & Standard Weights

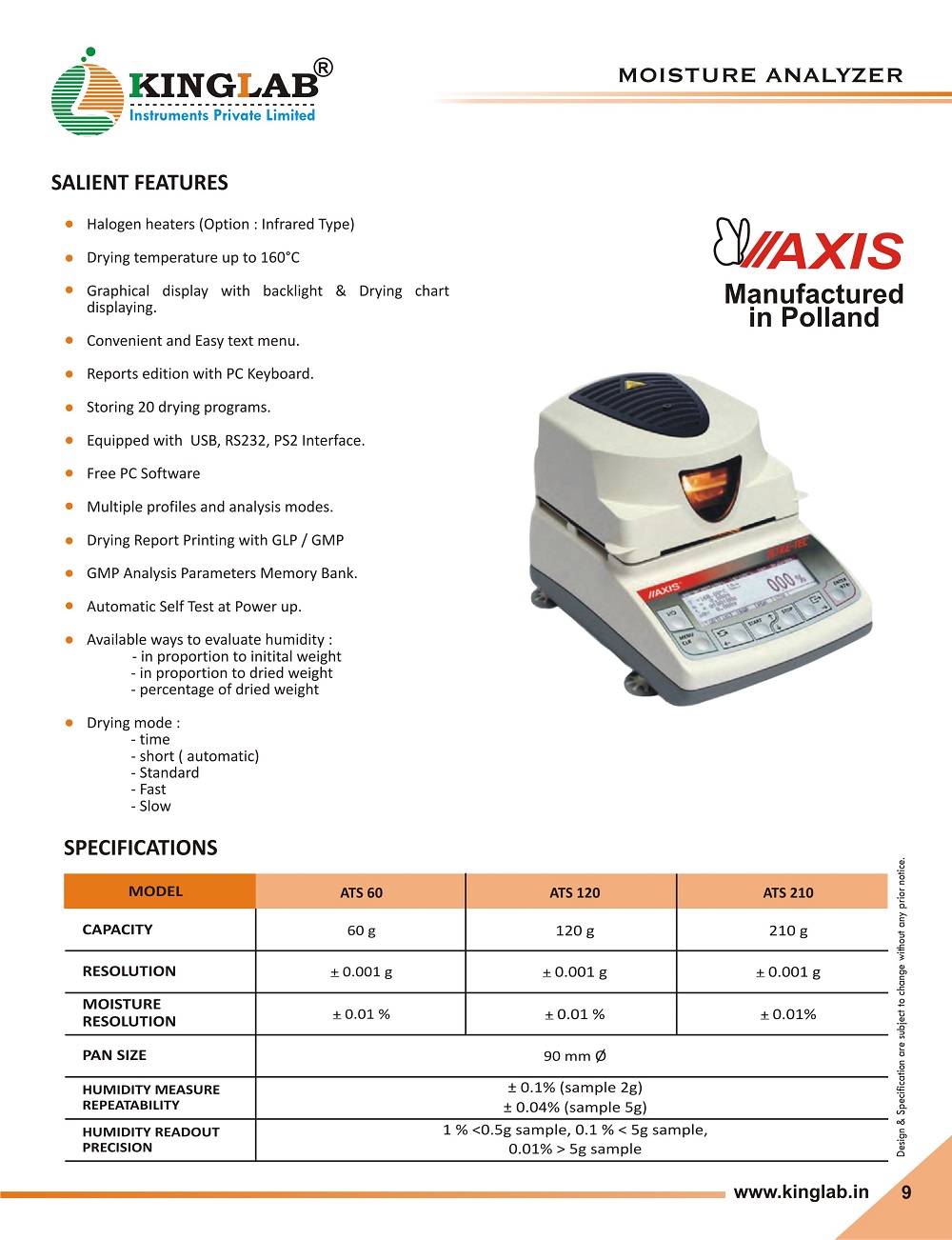

Moisture Analyzer

Moisture Analyzer

Optional Accessories

Calibration Thermometer

Printer

Software

Test Weights

Features

  • Halogen heaters (Option : Infrared Type)
  • Drying temperature up to 160 C
  • Graphical display with backlight & Drying chart displaying.
  • Convenient and Easy text menu.
  • Reports edition with PC Keyboard.
  • Storing 20 drying programs.
  • Equipped with USB, RS232, PS2 Interface.
  • Free PC Software
  • Multiple profiles and analysis modes.
  • Drying Report Printing with GLP / GMP
  • GMP Analysis Parameters Memory Bank.
  • Automatic Self Test at Power up.
  • Available ways to evaluate humidity :
    – in proportion to initital weight
    – in proportion to dried weight
    – percentage of dried weight
  • Drying mode :
    – time
    – short ( automatic)
    – Standard
    – Fast
    – Slow
    – Step

Specifications

MODEL ATS 60 ATS 120 ATS 210 BTS 110D BTS 110
CAPACITY (g) 60 120  210 110 110
RESOLUTION (g) 0.001 0.001 0.001 0.005 0.01
CAPACITY (g) 0.01 0.01 0.01 0.005 0.1
PAN SIZE (MM) 90
HUMIDITY MEASURE
REPEATABILITY
± 0.1% (sample 2g)
± 0.04% (sample 5g)
± 0.5% (sample 2g)
± 0.2% (sample 5g)
HUMIDITY READOUT
PRECISION
1 % <0.5g sample, 0.1 % < 5g sample, 0.01% > 5g sample 0.1 % (sample > 10g)
1% (sample <10g)

Specification are subject to change without notice.
