Digital Ultrasonic Cleaner

Digital Ultrasonic Cleaner

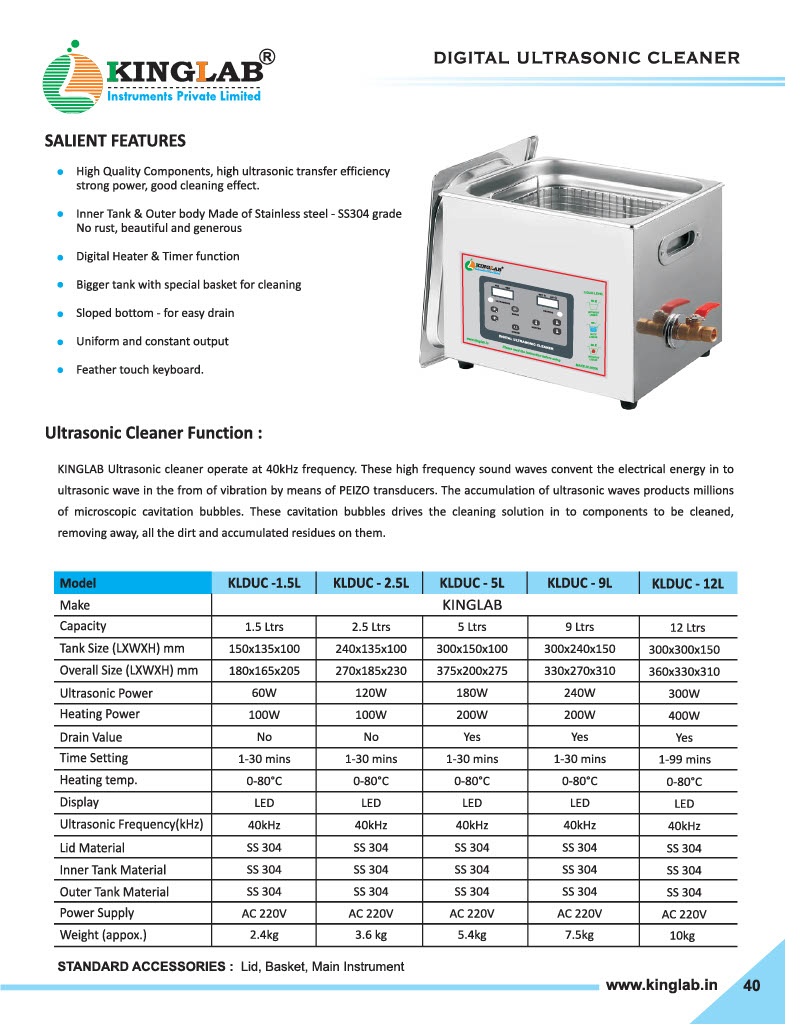

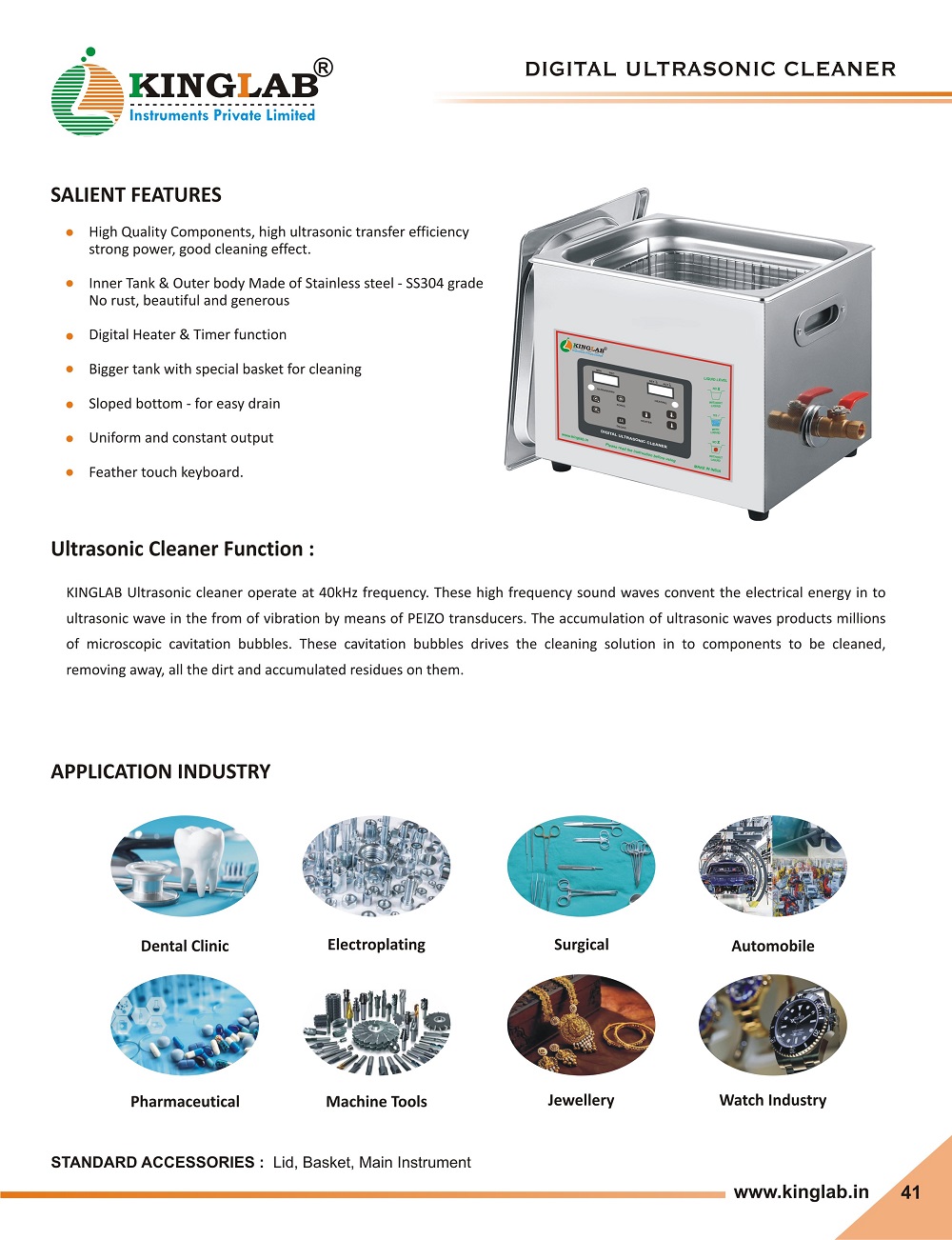

Ultrasonic Cleaner Function

KINGLAB ultrasonic cleaner operate at 40kHz frequency. These high frequency sound waves convent the electrical energy in to ultrasonic wave in the from of vibration by means of PEIZO transducers. The accumulation of ultrasonic waves products millions of microscopic cavitation bubbles. These cavitation bubbles drives the cleaning solution in to components to be cleaned, removing away, all the dirt and accumulated residues on them.

Salient Features

  • Inner Tank & Outer body Made of Stainless steel – SS304 grade
  • Sloped bottom – for easy drain
  • Rust and corrosion proof.
  • Uniform and constant output.
  • Dynamic PEIZO Transducers (with High Velocity Focussing Head)
  • Digital Red LED Display
  • Scratch Proof Film on Outer Cabinet
  • Digital timer & Temperature function
  • Feather touch keyboard.
  • Moisture Proof PCB

Application

  • All Laboratories, automobile & Components Industrial
  • Watches / Lens / frames and glasses, Diamond and Jewellery
  • O.T. Surgical and Hospital equipments, Electronic PCB’s, Bearings
  • Fuel Injection and Parts, Inkjet cartridges

Specifications

Model KLDUC – 3L KLDUC – 6L
Make KINGLAB
Capacity 3 Litres 6 Litres
Tank Size (LXWXH) mm 240 x 140 x 100 300 x 150 x 150
Overall Size (LXWXH) mm 270 x 170 x240 330 x 180 x 310
Ultrasonic Power 100 W 150 W
Heating Power 100 W 300 W
Drain Value NO YES
Time Setting 0 to 20 minutes 0 to 20 minutes
Heating temp. 0 – 60 0C 0 – 60 0C
Display Digital RED LED 7 Segment Digital RED LED 7 Segment
Ultrasonic Frequency(kHz) 40 kHz 40 kHz
Lid Material SS 304 SS 304
Inner Tank Material SS 304 SS 304
Outer Tank Material SS 201 SS 201
Power Supply AC 220V / 50 HZ AC 220V / 50 HZ
Weight (appox.) 4.8 kg 9 kg

Design & Specification are subject to change without any prior notice.

Standard Accessories : Lid, Basket, Main Instrument
