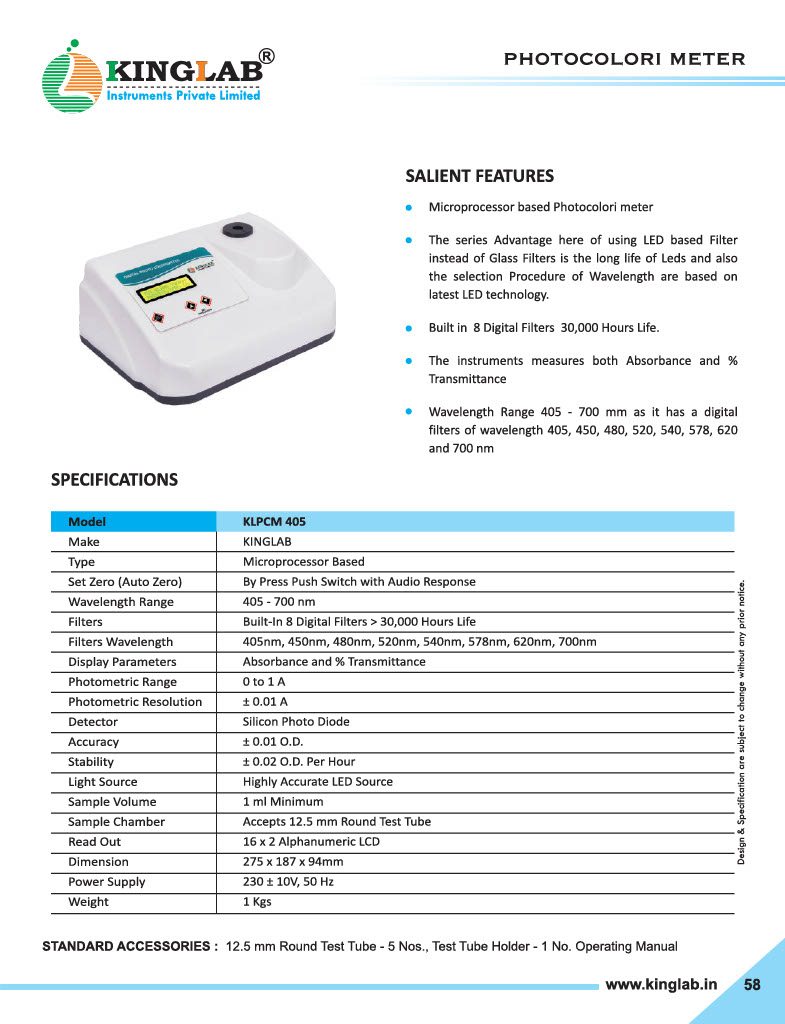

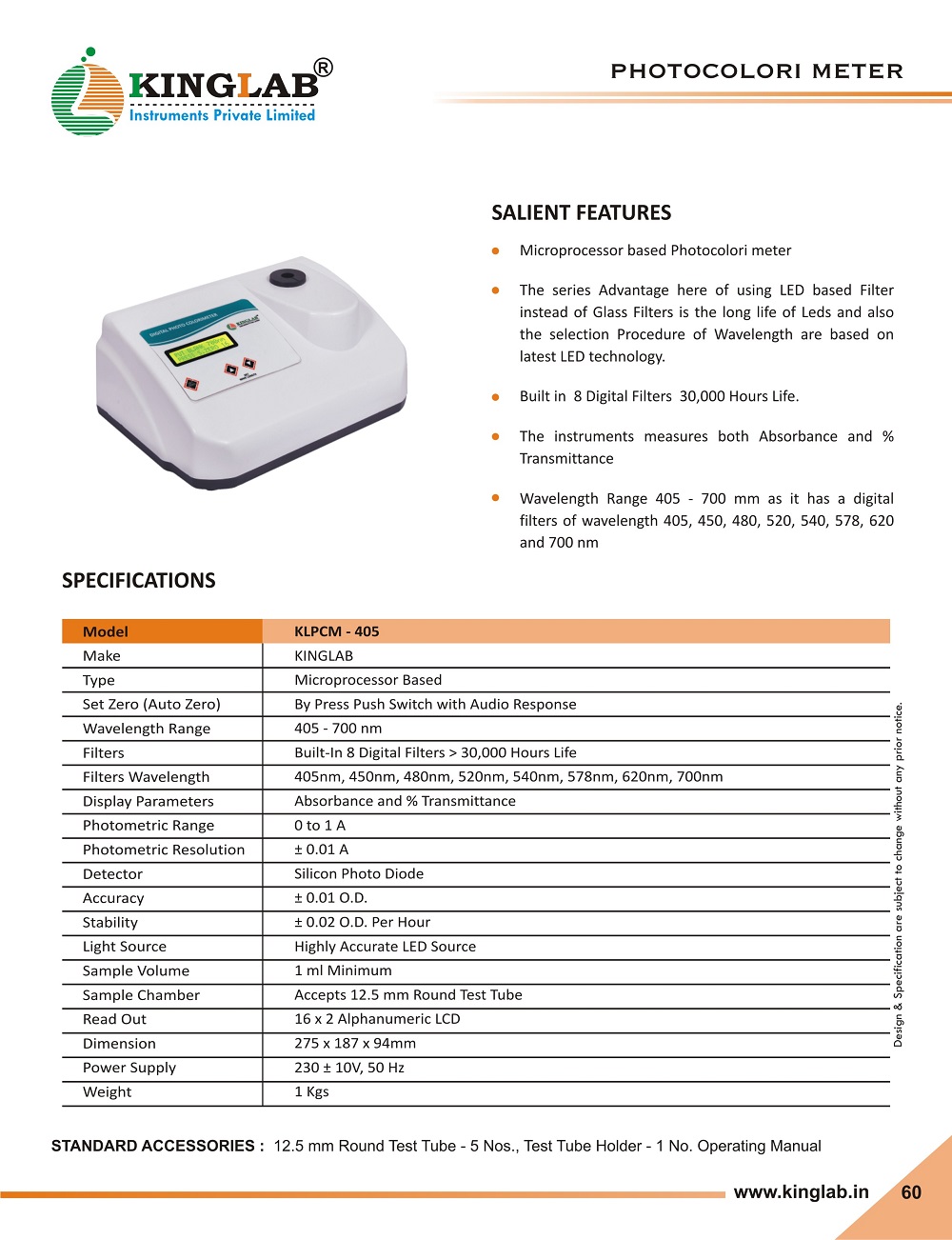

Photocolori Meter

Photocolori Meter
KLPCM - 405

Features

  • Microprocessor based Photocolori meter
  • The series Advantage here of using LED based Filter instead of Glass Filters is the long life of Leds and also the selection Procedure
    of Wavelength are based on latest LED technology.
  • Built in 8 Digital Filters 30,000 Hours Life .
  • The instruments measures both Absorbance and % Transmittance
  • Wavelength Range 405 – 700 mm as it has a digital filters of wavelength 405, 450, 480, 520, 540, 578, 620 and 700 nm

Specifications

Model KLPCM – 405
Make KINGLAB
Type Microprocessor Based
Set Zero (Auto Zero) By Press Push Switch with Audio Response
Wavelength Range 405 – 700 nm
Filters Built-In 8 Digital Filters > 30,000 Hours Life
Filters Wavelength 405nm, 450nm, 480nm, 520nm, 540nm, 578nm, 620nm, 700nm
Display Parameters Absorbance and % Transmittance
Photometric Range 0 to 1 A
Photometric Resolution ± 0.01 A
Detector Silicon Photo Diode
Accuracy ± 0.01 O.D.
Stability ± 0.02 O.D. Per Hour
Light Source Highly Accurate LED Source
Sample Volume 1 ml Minimum
Sample Chamber Accepts 12.5 mm Round Test Tube
Read Out 16 x 2 Alphanumeric LCD
Dimension 275 x 187 x 94mm (Approx)
Weight 1 Kgs (Approx)
Power 230 ±10V, 50 Hz

Design & Specification are subject to change without any prior notice.

Standard Accessories

12.5 mm Round Test Tube – 5 Nos.
Test Tube Holder 1 No.
Operating Manual
