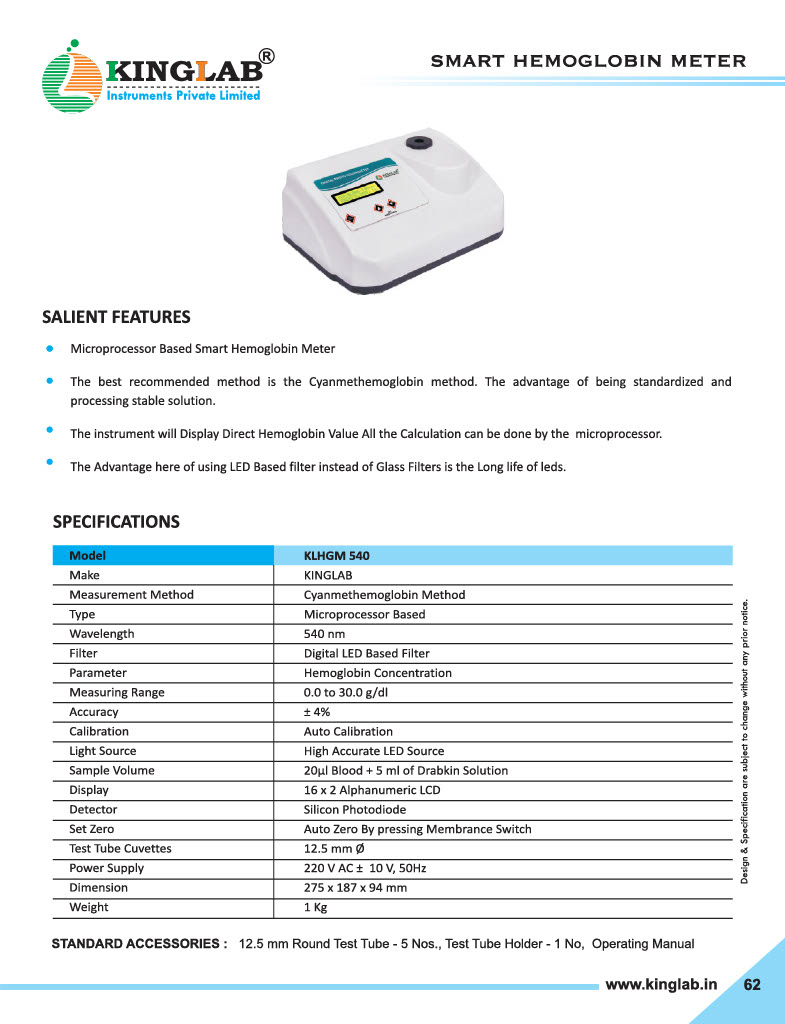

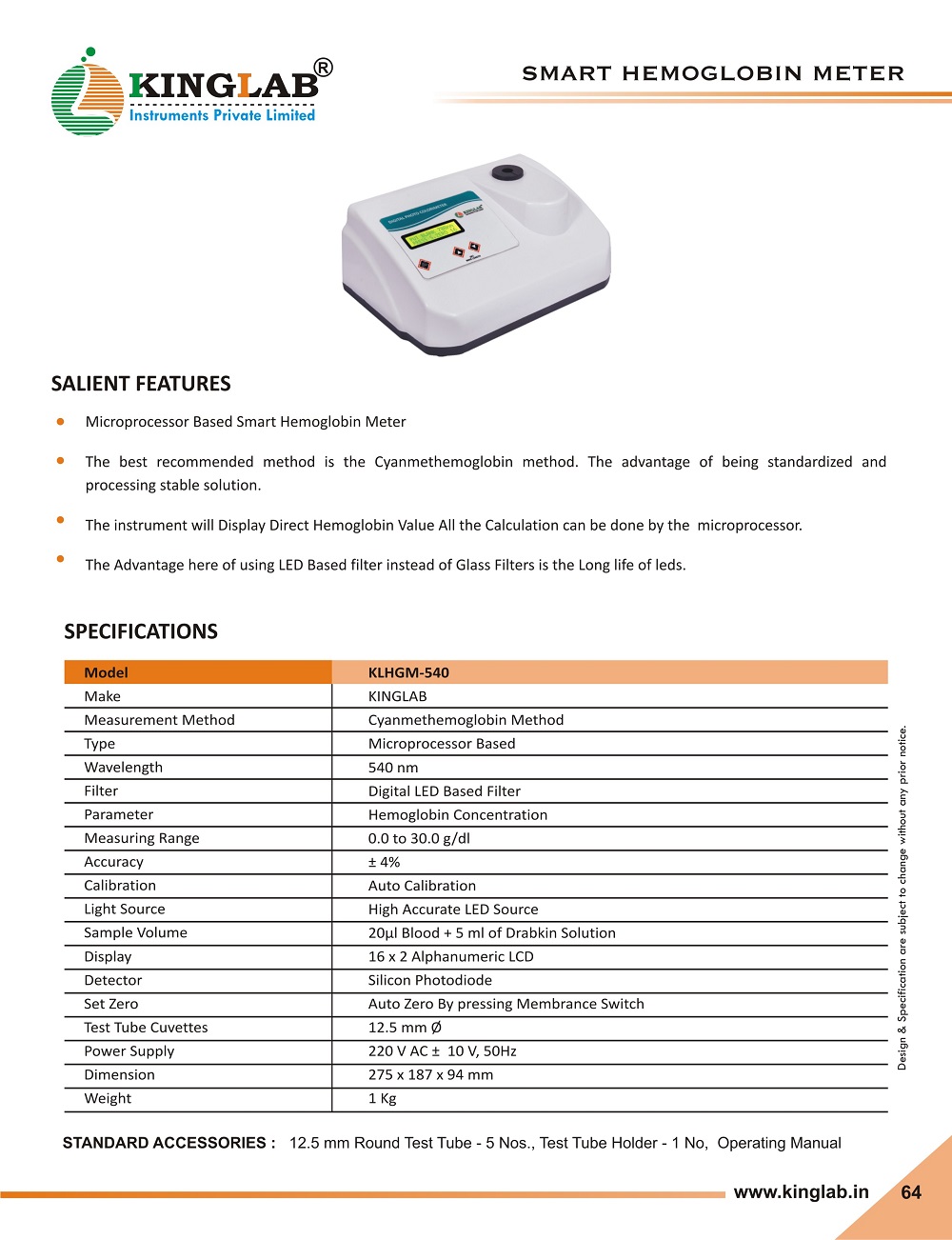

Smart Hemoglobin Meter

Smart Hemoglobin Meter
KLHGM - 540

Salient Features

  • Microprocessor Based Smart Hemoglobin Meter
  • The best recommended method is the Cyanmethemoglobin method. The advantage of being standardized and processing stable
  • The instrument will Display Direct Hemoglobin Value All the Calculation can be done by the microprocessor.
  • The Advantage here of using LED Based filter instead of Glass Filters is the Long life of leds.

Standard Accessories

12.5 mm Round Test Tube – 5 Nos.
Test Tube Holder – 1 No
Operating Manual


Model KLHGM-540
Measurement Method Cyanmethemoglobin Method
Type Microprocessor Based
Wavelength 540 nm
Filter Digital LED Based Filter
Parameter Hemoglobin Concentration
Measuring Range 0.0 to 30.0 g/dl
Accuracy ± 4%
Calibration Auto Calibration
Light Source High Accurate LED Source
Sample Volume 20μl Blood + 5 ml of Drabkin Solution
Display 16 x 2 Alphanumeric LCD
Detector Silicon Photodiode
Set Zero Auto Zero By pressing Membrance Switch
Test Tube Cuvettes 12.5 mm Dia
Power Supply 220 V AC ± 10 V, 50Hz
Dimension 275 x 187 x 94 mm (Approx)
Weight 1 Kg (Approx)

Design & Specification are subject to change without any prior notice.
