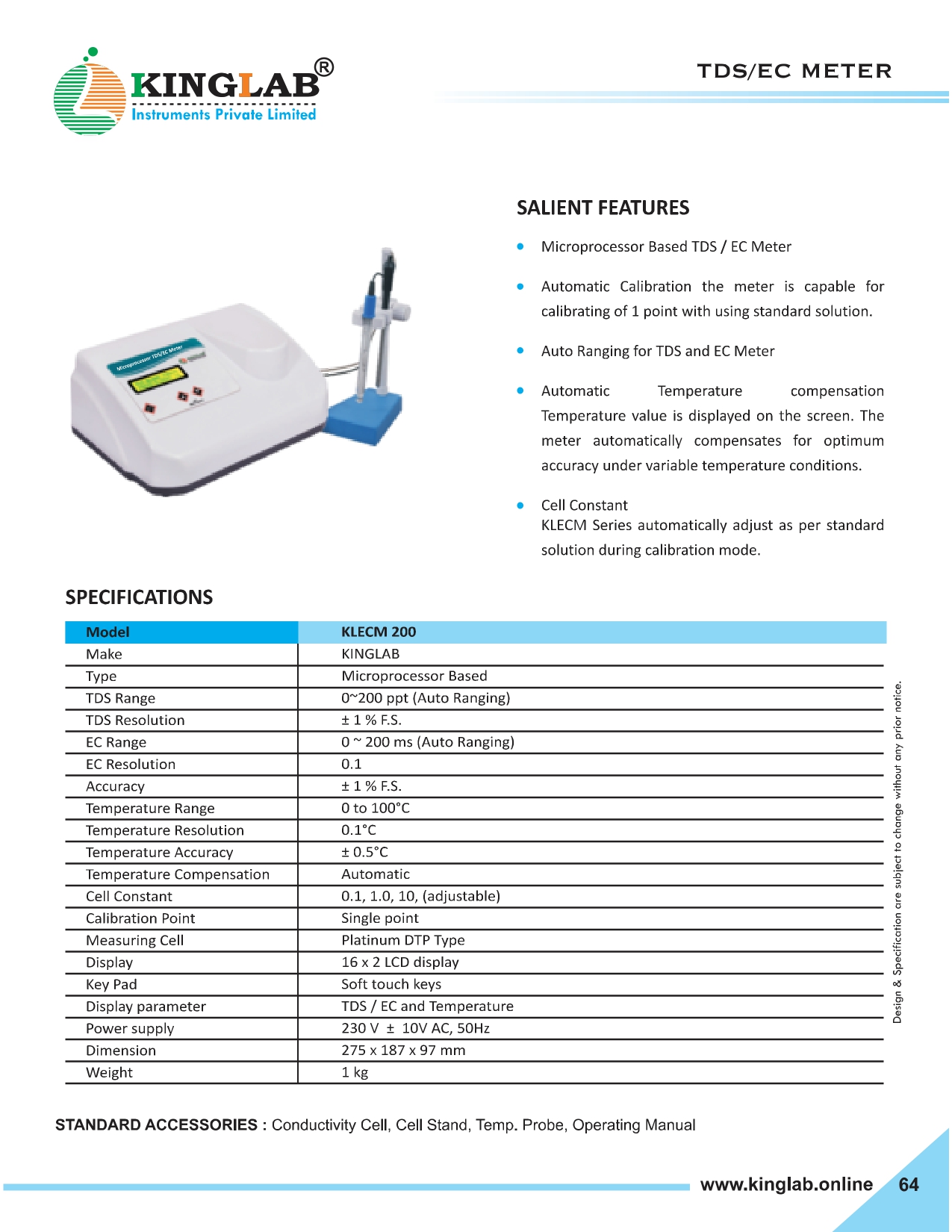

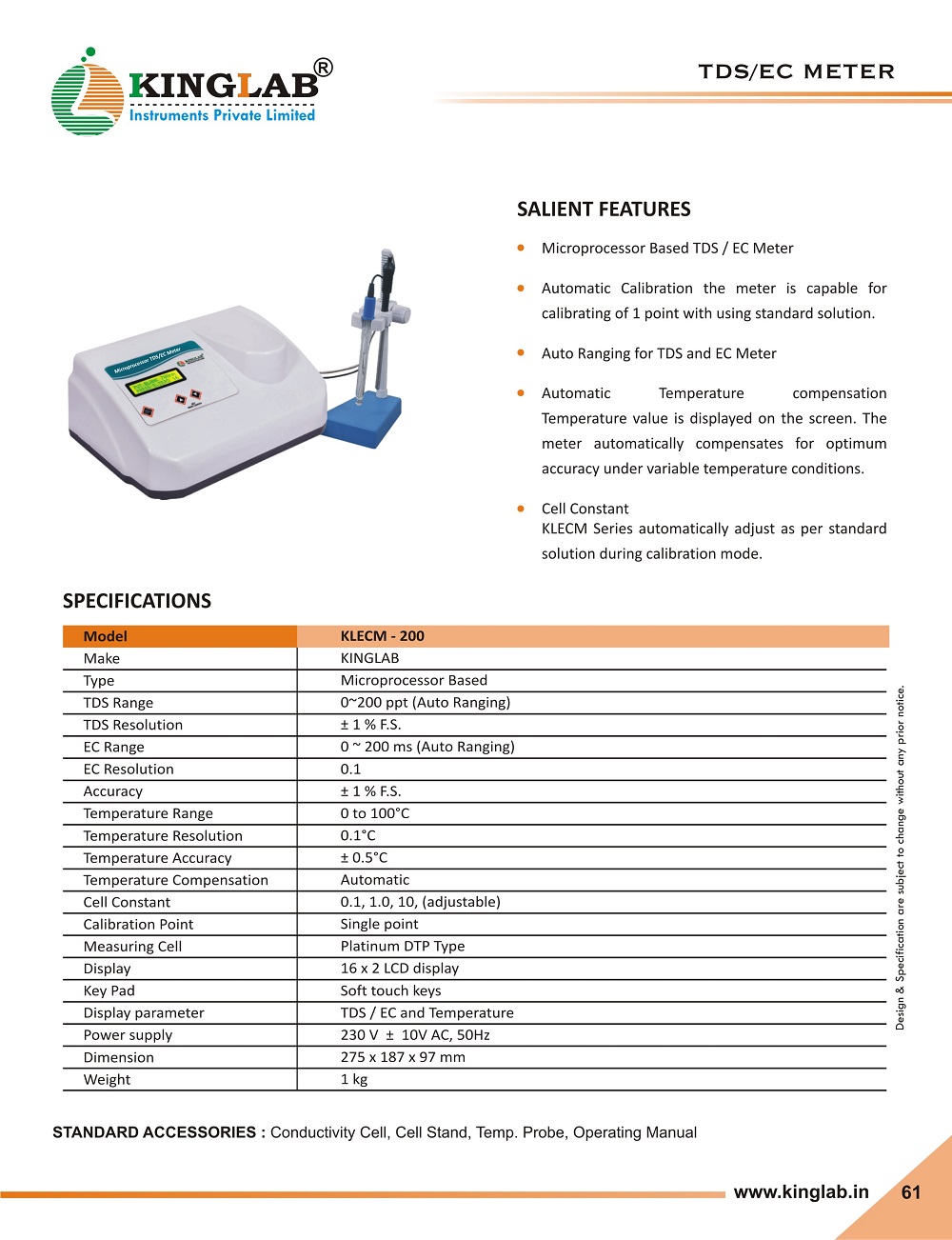

TDS/EC Meter

Microprocessor TDS/EC Meter

Features

  • Automatic Calibration the meter is capable for calibrating of 1 point with using standard solution.
  • Auto Ranging for TDS and EC
  • Automatic Temperature compensation : Temperature value is displayed on the screen. The meter automatically compensates for optimum accuracy under variable temperature conditions.
  • Cell Constant : KLECM Series automatically adjust as per standard solution during calibration mode.
  • Memory Storage : KLECM – 203 Expanded Memory Storage upto 1000 readings. Built-in real-time clock and date.
  • PC Interface KLECM-203 Stored data can be transferred into computer.
  • Soft Touch Keypad

Standard Accessories

Conductivity Cell, Cell Stand, Temp. Probe, Operating Manual

Specifications

Model KLECM – 200 KLECM – 203
Make KINGLAB
Type Microprocessor Based
TDS Range 0~1000 ppt (Auto Ranging)
TDS Resolution 0.1 ppm
EC Range 0 ~ 1000 ms (Auto Ranging)
EC Resolution 0.1
Accuracy ± 1 % F.S.
Temperature Range 0 to 100 °C
Temperature Resolution 0.1 °C
Temperature Accuracy ± 0.5 °C
Temperature Compensation Automatic
Cell Constant 0.1, 1.0, 10, (adjustable)
Calibration Point Single point
Measuring Cell platinum DTP Type
Display 16 x 2 LCD display
Key Pad Soft touch keys
Display parameter TDS / EC and Temperature
Power supply 230 V 10V AC, 50Hz
Dimension 275 x 187 x 97 mm
Weight 1 kg (approx)
Interface Not Available Available
Memory Not Available Storage Up to 1000 Datas
Date / Time Not Available Available

Specification are subject to change without notice.
