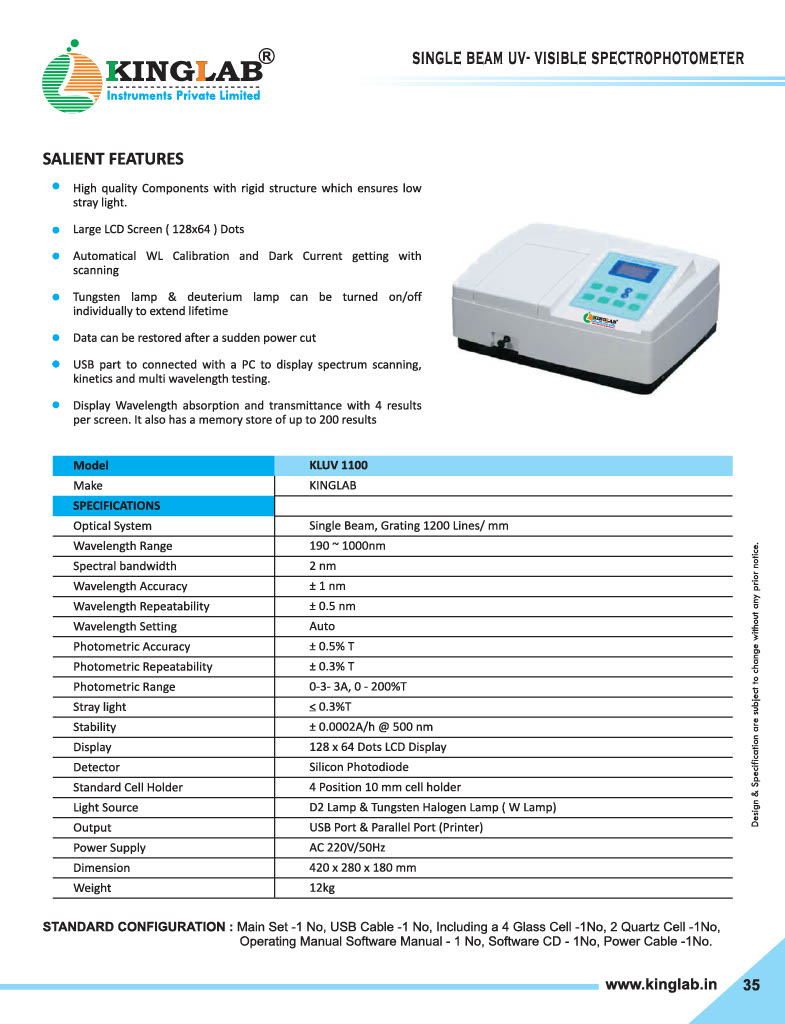

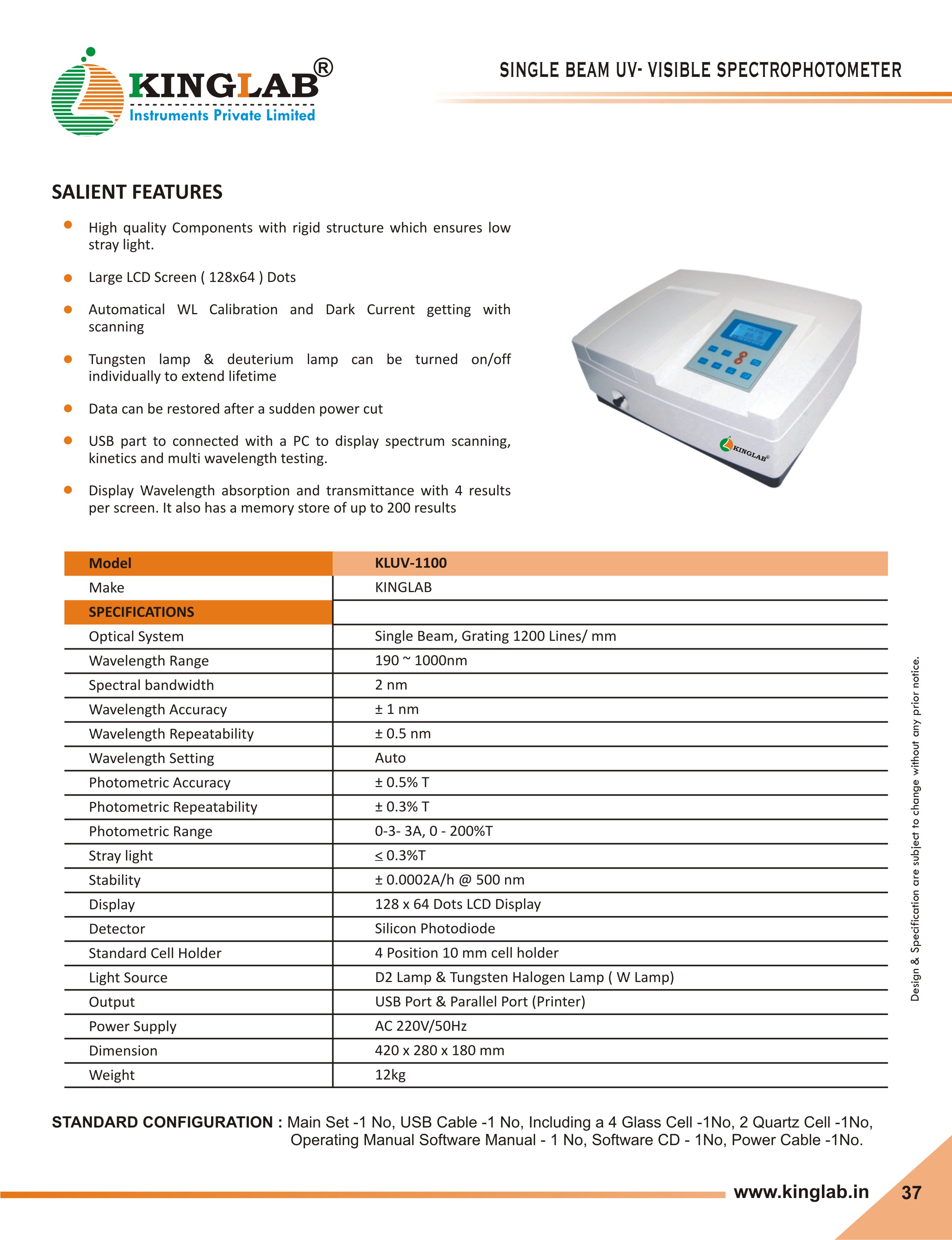

UV- Visible Spectrophotometer

UV- Visible Spectrophotometer

Salient Features

  • Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.
  • Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance .
  • The Instrument is supply with PC Software expands the capabilities of the instrument includes photometric analysis, Quantitative analysis, Spectra Scanning, Kinetics,
  • DNA/Protein analysis multi-wavelength test etc.,
  • Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
  • Equipped With USB port to connect with PC to Display Spectrum Scanning Kinetics and Multi Wavelength testing results on the screen.
  • Plug type deuterium lamp and tungsten lamp transfer tamps without optics debugging.
  • User Set Wavelength automatically through arrow keys to avoid operation errors.


  • Medicine / Pharmaceutical
  • Industry Environment Monitoring
  • Commodity Inspection
  • Food Inspection
  • Agricultural Chemistry
  • Teaching in colleges & Universities
  • Metallurgy
  • Geology
  • Machine Manufacturing
  • Petrochemical Industries
  • Water and Waste Water Labs
  • Food and Beverage Labs


Optical SystemSingle Beam, Grating 1200 Lines/ mm
Wavelength Range190 ~ 1100nm
Spectral bandwidth2 nm
Wavelength Accuracy± 1 nm
Wavelength Repeatability± 0.2 nm
Photometric Accuracy± 0.5% T
Photometric Repeatability0.2%T
Photometric Range0-200%T, -0.3 – 3A
Stray light< 0.5%T
Stability± 0.0002A/h @ 500 nm
Baseline flatness± 0.002 A
Noise± 0.001 A
Wavelength SettingAuto
Light sourceimported Deuterium & Tungsten lamp
Display128×64 LCD
DetectorSilicon Photodiode
Data OutputUSB port & Parallel port (Printer)
Cell Holder4 Position 10 mm cell holder
PowerAC 220V/50Hz, AC 110V/60Hz

Design & Specification are subject to change without any prior notice.

Standard Configuration

  • Main Set -1 No,
  • USB Cable -1 No,
  • Including a 4 Glass Cell -1No,
  • 2 Quartz Cell -1No,
  • Operating Manual Software Manual – 1 No,
  • Software CD – 1No,
  • Power Cable -1No.
