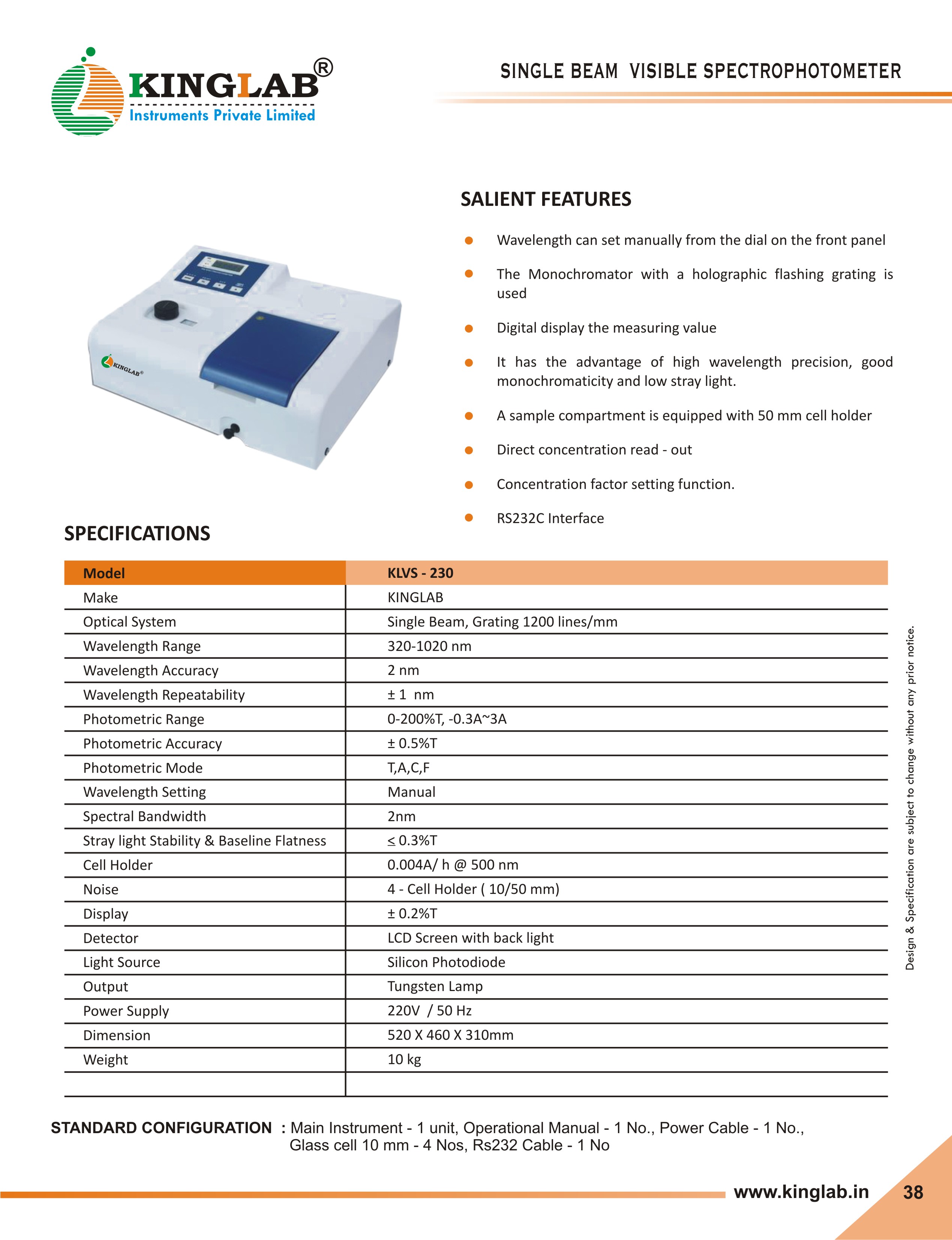

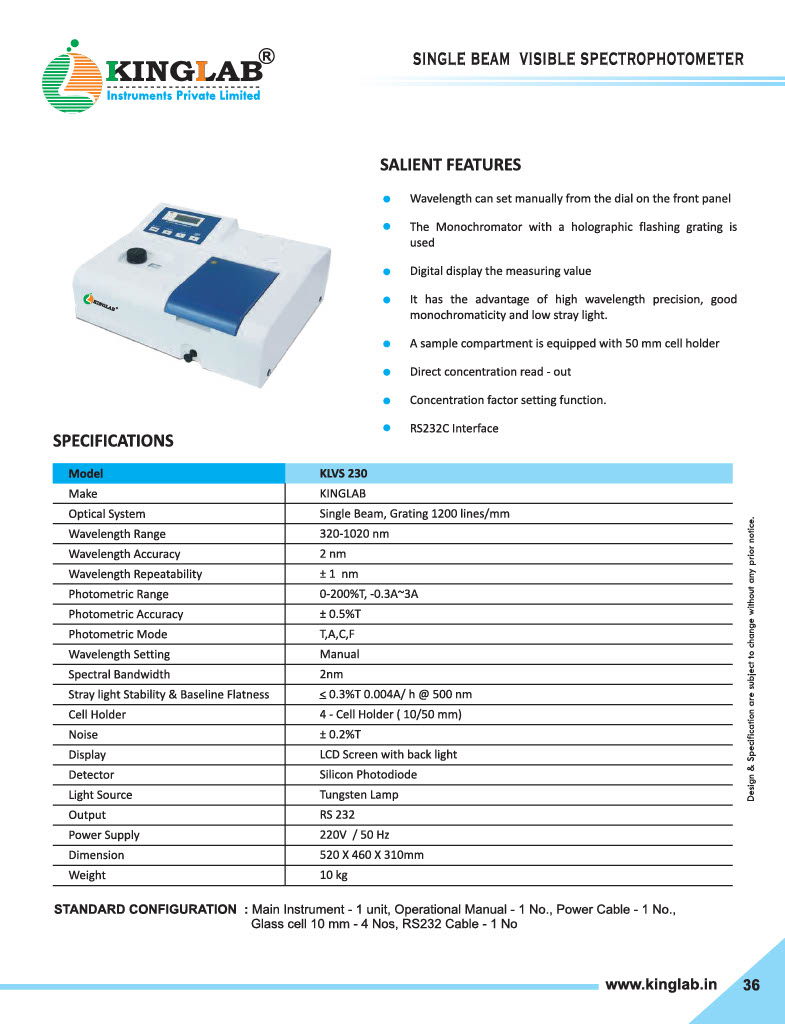

Visible Spectrophotometer KLVS – 230

Visible Spectrophotometer
KLVS - 230

Salient Features

  • Wavelength can set manually from the dial on the front panel
  • The Monochromator with a holographic flashing grating is used.
  • Digital display the measuring value
  • It has the advantage of high wavelength precision, good monochromaticity and low stray light.
  • A sample compartment is equipped with 50 mm cell holder
  • Direct concentration read – out
  • Concentration factor setting function.
  • RS232C Interface

Specifications

Model KLVS – 230
Make KINGLAB
SPECIFICATIONS
Optical System Single Beam, Grating 1200 lines/mm
Wavelength Range 320-1020 nm
Wavelength Accuracy 2 nm
Wavelength Repeatability ± 1 nm
Photometric Range 0-200%T, -0.3A~3A
Photometric Accuracy ± 0.5%T
Photometric Mode T,A,C,F
Wavelength Setting Manual
Spectral Bandwidth 2nm
Stray light < 0.3%T
Stability & Baseline Flatness 0.004A/ h @ 500 nm
Cell Holder 4 – Cell Holder ( 10/50 nm)
Noise ± 0.2%T
Display LCD Screen with back light
Detector Silicon Photodiode
Light Source Tungsten Lamp
Output RS-232C
Power Supply 220V / 50 Hz
Overall Dimension (WxDxH) 520 X 460 X 310mm
Weight 10 Kg

Design & Specification are subject to change without any prior notice.

Standard Configuration

  • Main Instrument : 1 unit,
  • operational Manual : 1 No.,
  • Power Cable : 1 No.,
  • Glass cell 10 mm : 4 Nos,
  • Software CD : 1No.,
  • RS232 Cable : 1 No
